Industrial Mineral Dryer

Brief Introduction

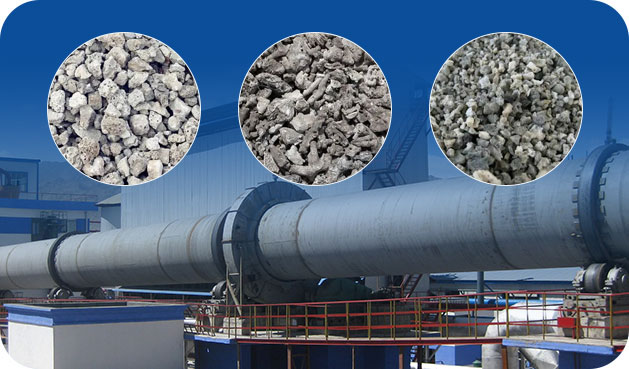

Industrial dryer machine in mineral processing. The removal of water from solid materials by thermal drying plays a significant role in modern mineral processing. A great number of dryer types are available.

Extracted ore, whatever the mineral, is usually first crushed and then finally must be dried. Drying is a critical aspect of mineral processing; the ability to control moisture levels from ore to final product helps reduce transportation costs, simplify downstream processing and produce refined products.

Working Principle

The mineral is sent to the hopper by a belt conveyor or bucket elevator, and then enters the feeding end through the feeding pipe through the feeding machine of the hopper. The material is added from the higher end, and the heating medium enters from the lower end, and is in countercurrent contact with the material. When the wet material moves forward in the cylinder, it directly or indirectly receives heat from the heating medium, so that the wet material can be dried, and then sent out through a belt or screw conveyor at the discharge end. In addition, dust collectors can also be used to reduce dust in the drying system.

Advantages

1. The cylinder runs smoothly and reliably:

the cylinder is made of steel material, which has the characteristics of high hardness and high toughness.
01
2. The new type of lifting plate device:

the material is completely uniform in the radial section of the dryer, making full use of heat energy.
02
3. Strong carrying capacity:

the base is made of cast steel so that the rolling ring fits well and the rotation is stable.
03

Cases and Price

Our Industrial Mineral Dryer has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you. Get Quote

Service Guarantees

01
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
02
Expert design as your order and requirement, with all-around solutions to your problems.
03
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
04
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Data

Shell diameter × shell Length	Inside diameter of outer shell （mm）	Inside diameter of inner shell （mm）	Shell Length （m）	Shell cubage （m³）	Shell obliquity	Lifting blade form	Highest inlet air temperature （℃）	Dimensions （m）
Φ1.5×15m	1500	500	15	20.27	3-5%	Lifting form	850	16.2×2.7×2.7
Φ1.5×17m			17	22.97				18.2×2.7×2.7
Φ1.5×19m			19	25.68				20.0×2.9×2.9
Φ1.8×21m	1800	650	21	35.91	3-5%	Lifting form	850	22.5×2.7×2.7
Φ1.8×23m			23	39.33				24.5×2.9×2.9
Φ1.8×25m			25	42.75				26.5×2.9×2.9
Φ2.2×21m	2200	800	21	58.10	3-5%	Lifting form	850	----
Φ2.2×23m			23	63.61
Φ2.2×25m			25	69.15

Shell diameter × shell Length	Inside diameter of outer shell (mm)	Inside diameter of inner shell (mm)	Shell cubage (m³)
Φ1.5×15m	1500	500	20.27
Φ1.5×17m			22.97
Φ1.5×19m			25.68
Φ1.8×21m	1800	650	35.91
Φ1.8×23m			39.33
Φ1.8×25m			42.75
Φ2.2×21m	2200	800	58.10
Φ2.2×23m			63.61
Φ2.2×25m			69.15
